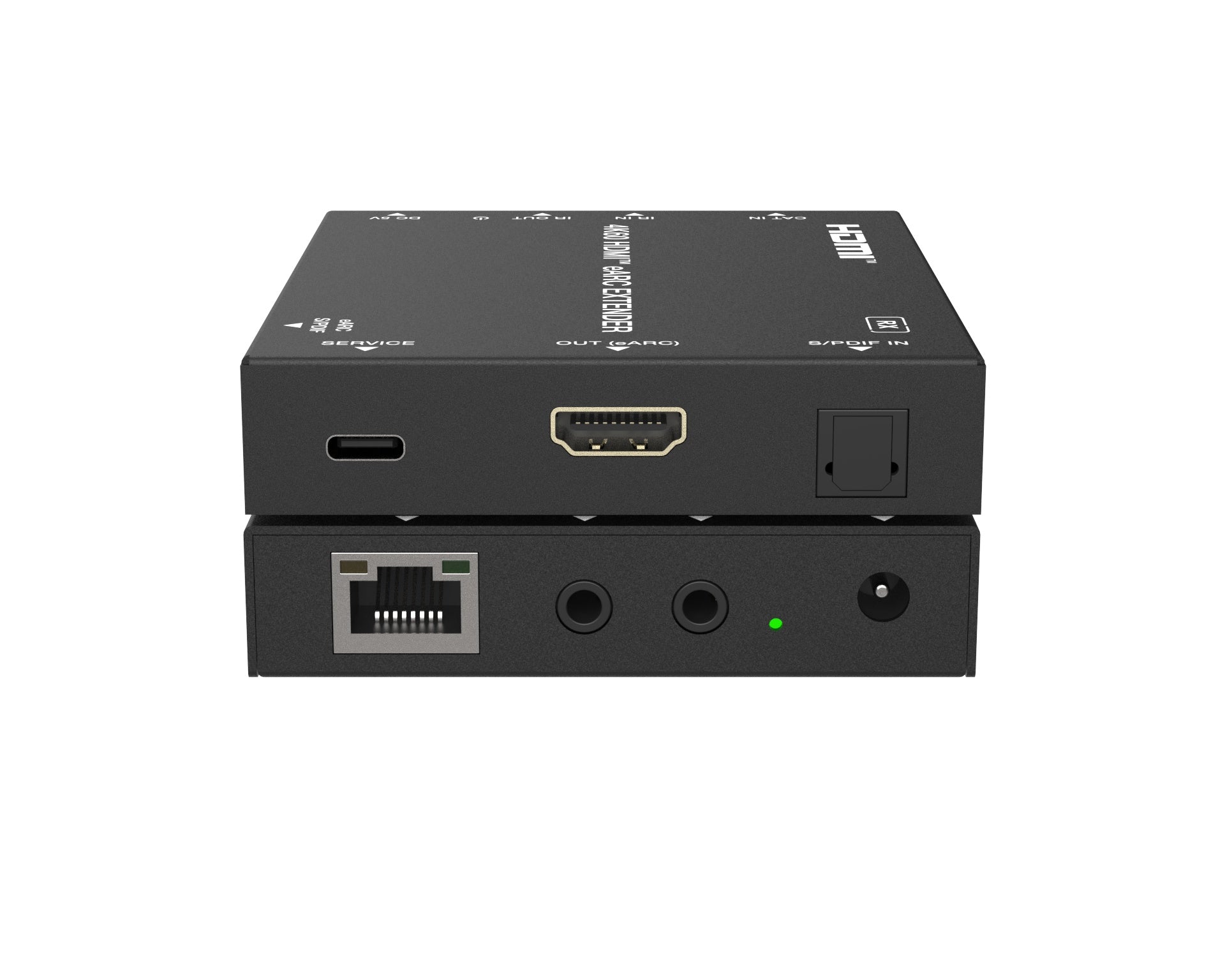

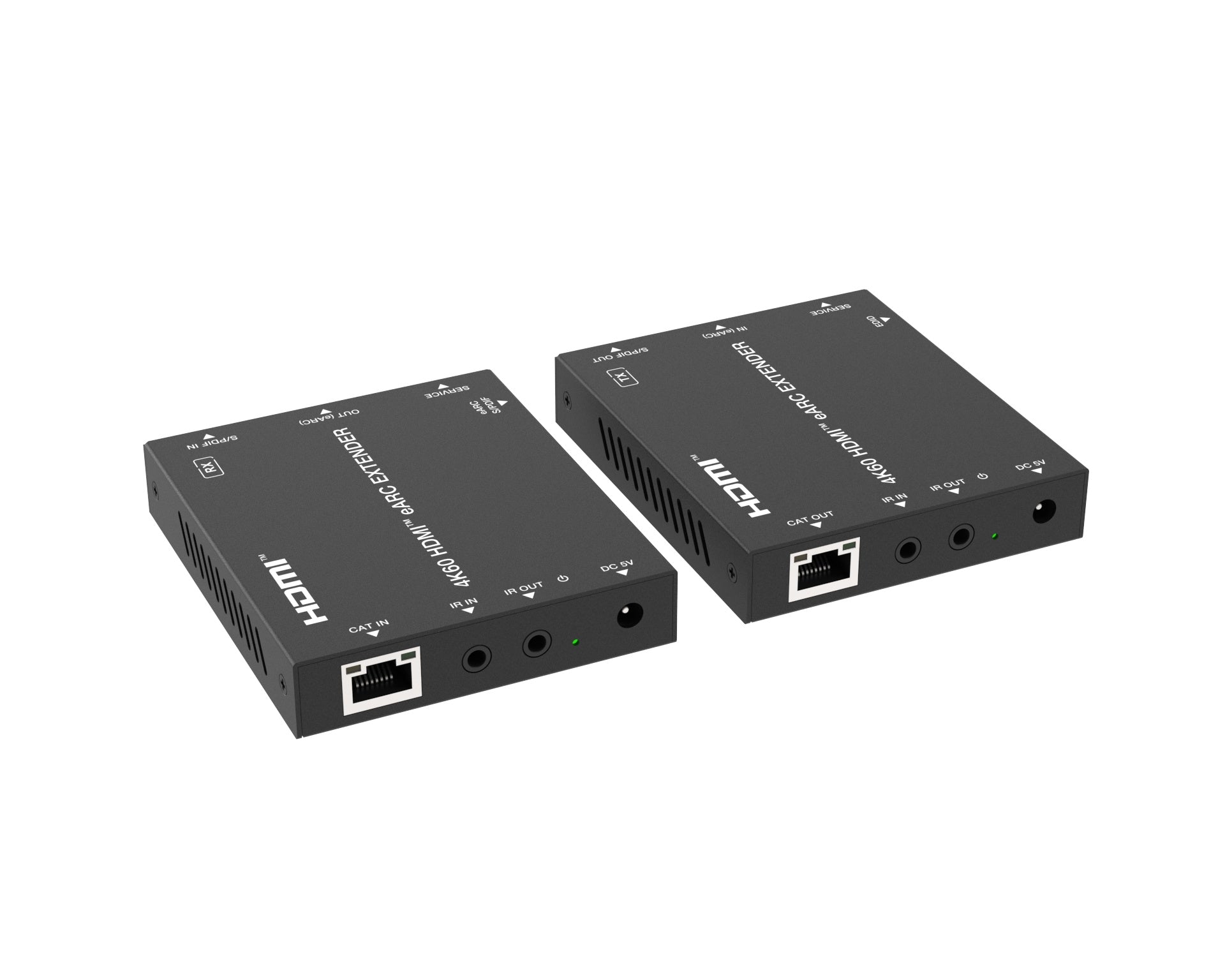

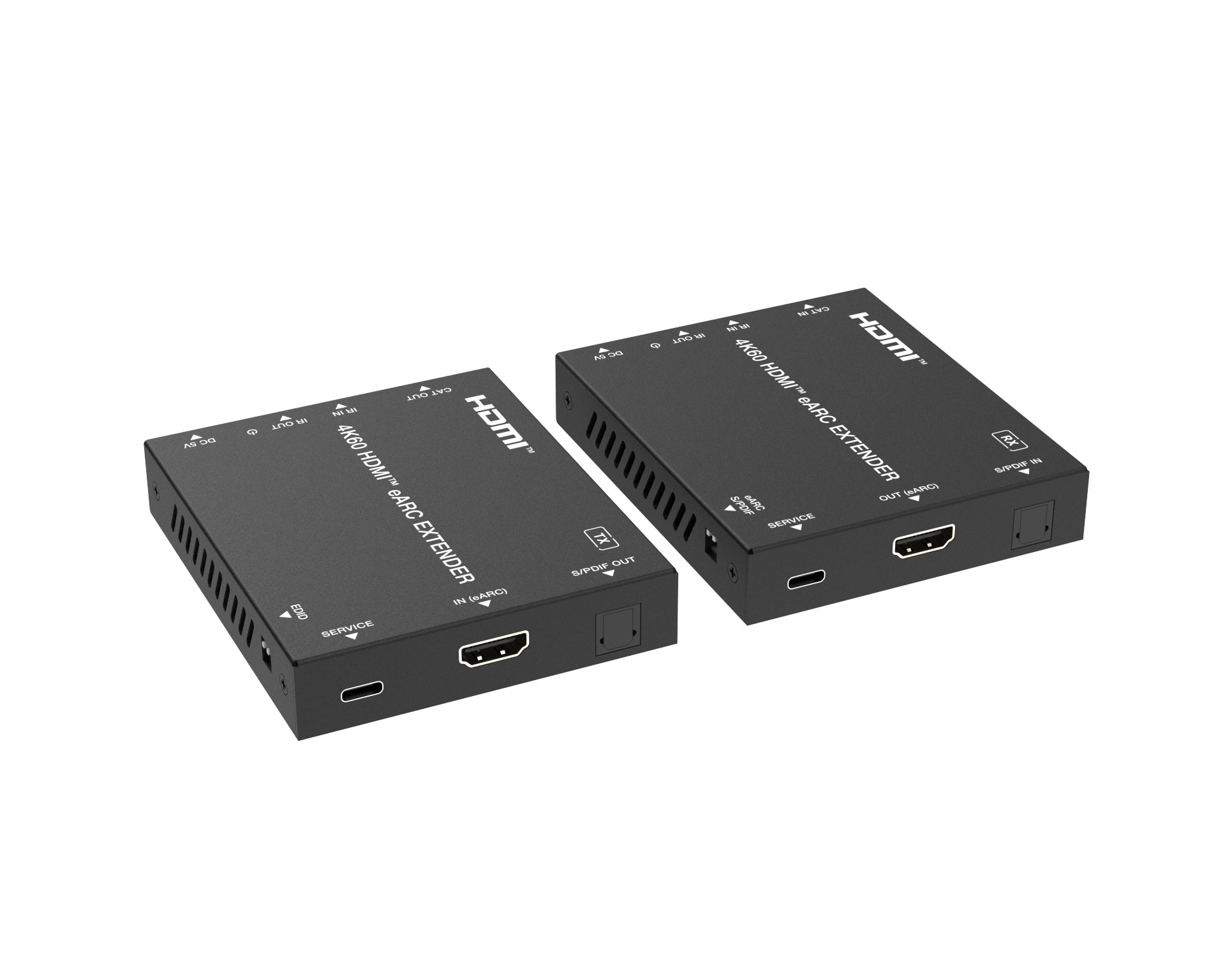

This 4K60 HDMI™ Extender can extend HDMI™ high-definition signal and bi-directional
IR control signal to a distance up to 50m/164ft over CAT6/6a cable, achieving zero-delay,
long-distance transmission between the transmitter and the receiver. Video resolution is
up to 4K2K@60Hz. It supports both HDMI™ eARC and SPDIF audio pass-through. CEC
pass-through is also supported between eARC input and output for eARC handshake
transmission.
For TVs without HDMI™ eARC functions, the extender provides an independent
SPDIF audio channel, in which the SPDIF audio can be transmitted from the SPDIF IN
port on RX to the SPDIF OUT port on TX.
Compliant with HDCP 2.2
Video bandwidth is 18Gbps
Video resolution is up to 4K2K@60Hz 4:4:4 24bit
Transmission distance can be up to 50m/164ft over CAT6/6a cable
eARC and ARC/SPDIF transmission:
eARC audio return format: PCM 7.1 192KHz, Dolby Atmos, DTS:X
ARC/SPDIF audio return format: PCM 2.0, Dolby 5.1CH, DTS 5.1CH
Support CEC pass-through and bi-directional IR pass-through
Audio formats is up to LPCM 7.1CH, Dolby True HD, DTS HD Master Audio
Support HDR, HDR10, HDR10+, Dolby Vision, HLG
Advanced EDID management
1× 4K60 HDMI™ Extender (TX)
1× 4K60 HDMI™ Extender (RX)
1× IR Blaster Cable (1.5m)
1× IR Wideband Receiver Cable (1.5m)
2× 5V/2A Multinational Power Supply
4× Mounting Ear
Machine Screw (KM3*4
